deploy it yourself

transform your cameras to AI vision

deploy on your terms

You don’t need heavy compute that is expensive and consumes a lot of energy. We offer edge based computing with NVIDIA Jetson for a reason! Visionplatform.ai is the only fully end-end solution for AI vision. Get started with a few clicks in the platform. Get started without time-consuming implementation processes.

Both deployment solutions seamlessly integrate with your existing infrastructure. Our platform can be connected to you production lines in any way you chose.

Cloud based computing offers easily accessible computing power whilst edge based computing keeps all your data on your premisses.

Watch demo video

option 1 (recommended)

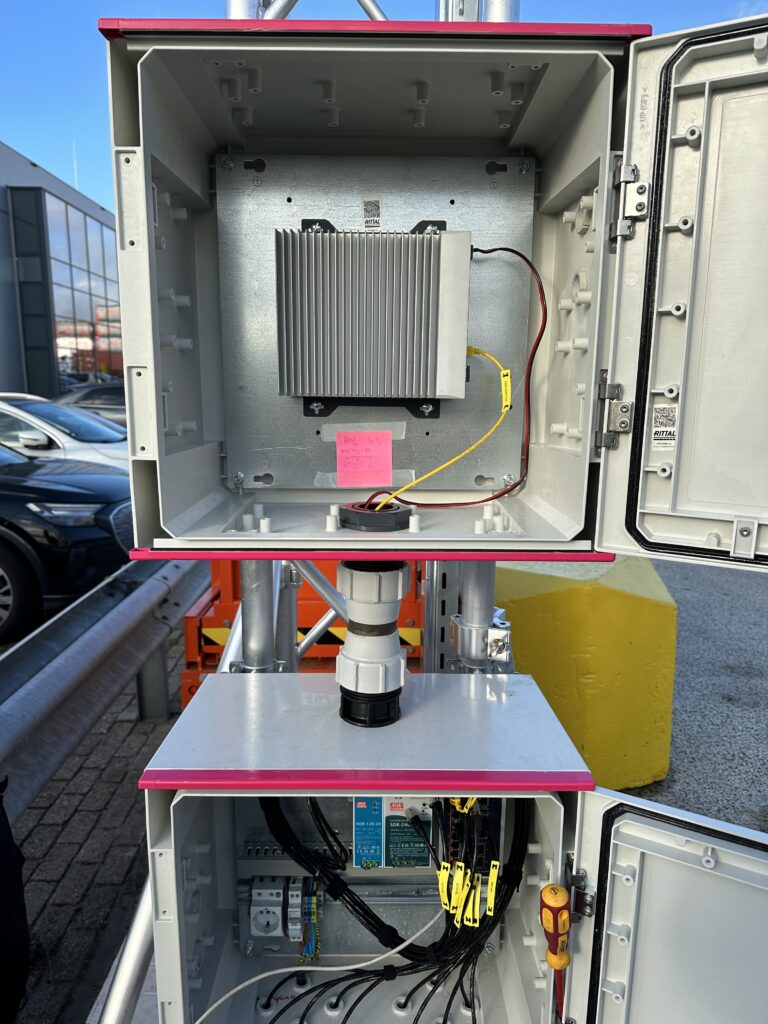

edge deployment

A no-effort edge AI solution for complete AI deployment from start to finish
Smooth interaction with existing industrial or IP cameras and controllers
On-premise processing and image management and output analysis
Built on Nvidia Jetson (a compact, energy-efficient GPU Powerhouse for AI Edge computing)

✓ Secure (on-premise)
✓ Low latency (lightning fast)
✓ Scalable (easily connect multiple cameras)

option 2
cloud deployment

Accelerate deployment time without the necessity for edge device configuration
Effortlessly scale projects on multiple locations
Start within minutes

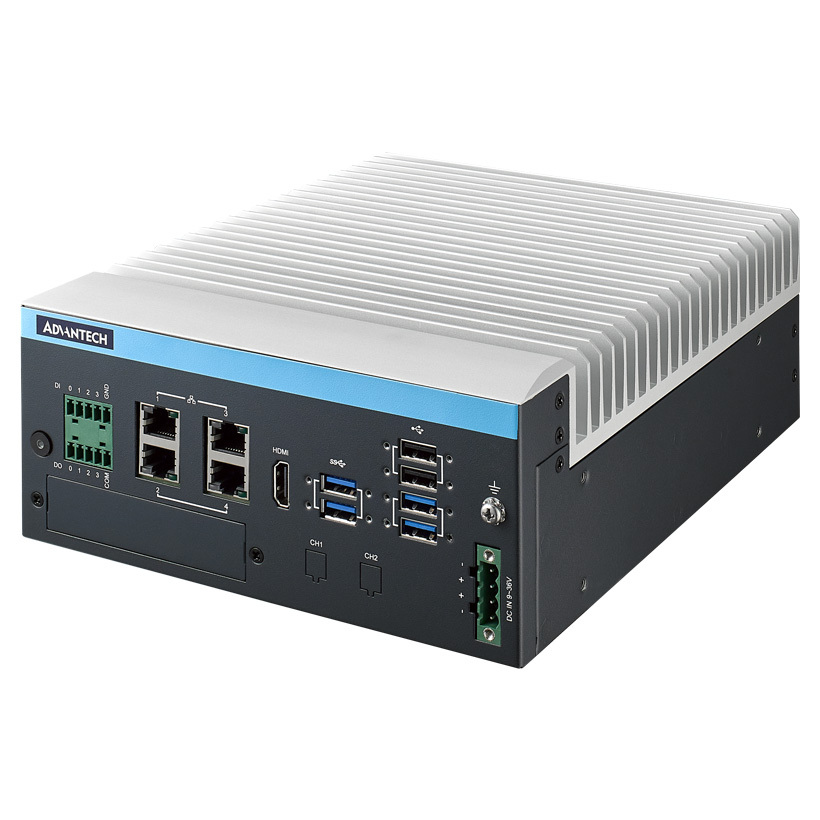

technical specification edge computer

Nvidia Jetson Nano 8GB

General

Dimensions (W x D x H): 130 x 130 x 46 mm (5.1″ x 5.1″ x 1.8″)
Weight: 1.2 kg (2.65 lbs)
Installation methods: Desktop / Wall mount
Capturing frame rate: up to 8 camera’s
GigE & USB 3.0 camera compatibility: Basler Pylon SDK
Allied Vision Vimba SDK
IDS uEye(+) SDK
Inference throughput: Object Detection (YOLOv5m): 131 FPS
Internal storage capability: 256GB or 512GB
Jetson GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
AI performance reference: Up to 40 TOPs
CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
I/O: Ethernet 1 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840×2160 @ 60Hz)
USB External: 2 x USB 3.2 Gen 2, 1 x USB 2.0
Internal: 1 x USB 2.0 (by pin header)
OTG USB 1 x Micro USB

Nvidia Jetson Orin NX 8 GB

General

Dimensions (W x D x H): 194.8 x 174.3 x 65.85 mm (7.67″ x 6.86″ x 2.59″)
Weight: 1.2 kg (2.65 lbs)
Installation methods: Desktop / Wall mount
Capturing frame rate: up to 10 camera’s
GigE & USB 3.0 camera compatibility: Basler Pylon SDK
Allied Vision Vimba SDK
IDS uEye(+) SDK
Inference throughput: Object Detection (YOLOv5m): 193 FPS
Internal storage capability: 256GB or 512GB
Jetson GPU: 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
AI performance reference: Up to 70 TOPs
CPU: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
I/O: Ethernet 1 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840×2160 @ 60Hz)
USB External: 6 x USB 3.2 Gen 2
Digital I/O 4-ch DI, 4-ch DO
Serial Port (Optional) 2 x RS-232/422/485 (On-board pin header reserved)
CANBus 1
OTG USB 1 x Micro USB

Nvidia Jetson Orin NX 16GB

General

Dimensions (W x D x H): 194.8 x 174.3 x 65.85 mm (7.67″ x 6.86″ x 2.59″)
Weight: 1.2 kg (2.65 lbs)
Installation methods: Desktop / Wall mount
Capturing frame rate: up to 12 camera’s
GigE & USB 3.0 camera compatibility: Basler Pylon SDK
Allied Vision Vimba SDK
IDS uEye(+) SDK
Inference throughput: Object Detection (YOLOv5m): 193 FPS
Internal storage capability: 256GB or 512GB
Jetson GPU: 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
AI performance reference: Up to 100 TOPs
CPU: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
I/O: Ethernet 1 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840×2160 @ 60Hz)
USB External: 6 x USB 3.2 Gen 2
Digital I/O 4-ch DI, 4-ch DO
Serial Port (Optional) 2 x RS-232/422/485 (On-board pin header reserved)
CANBus 1
OTG USB 1 x Micro USB

Nvidia Jetson Orin AGX 32GB

General

Dimensions (W x D x H): 192 x 230 x 87 mm (7.55″ x 9.05″ x 3.43″)
Weight: 4.5 kg (9.9 lbs)
Installation methods: Desktop / Wall mount
Capturing frame rate: up to 16 camera’s
GigE & USB 3.0 camera compatibility: Basler Pylon SDK
Allied Vision Vimba SDK
IDS uEye(+) SDK
Inference throughput: Object Detection (YOLOv5m): 342 FPS
Internal storage capability: 256GB, 512GB or 1 TB
Jetson GPU: 1792-core NVIDIA Ampere GPU with 56 Tensor
Cores, Maximum Operating Frequency: 930 MHz
AI performance reference: Up to 200 TOPs
CPU: 8-core NVIDIA Arm® Cortex A78AE v8.2
64-bit CPU, 2MB L2 + 4MB L3
I/O: Ethernet 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at)
Display HDMI (Max. resolution 3840×2160 @ 60Hz)
USB External: 2 x USB 2.0, 4 x USB 3.2 Gen 2
Internal: 1 x USB 2.0
Digital I/O 4-ch DI, 4-ch DO
Power Switch 1 x Power ON/OFF Button
Serial Ports 2 x RS-232/422/485 (On-board pin header)
OTG USB 1 x Micro USB

Nvidia Jetson Orin AGX 64GB

General

Dimensions (W x D x H): 192 x 230 x 87 mm (7.55″ x 9.05″ x 3.43″)
Weight: 4.5 kg (9.9 lbs)
Installation methods: Desktop / Wall mount
Capturing frame rate: up to 20 camera’s
GigE & USB 3.0 camera compatibility: Basler Pylon SDK
Allied Vision Vimba SDK
IDS uEye(+) SDK
Inference throughput: Object Detection (YOLOv5m): 342 FPS
Internal storage capability: 256GB, 512GB or 1 TB
Jetson GPU: 2048-core NVIDIA Ampere GPU with 64 Tensor
Cores] Maximum Operating Frequency: 1.3GH
AI performance reference: Up to 275 TOPs
CPU: 12-core NVIDIA Arm® Cortex A78AE v8.2
64-bit CPU, 3MB L2 + 6MB L3
I/O: Ethernet 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at)
Display HDMI (Max. resolution 3840×2160 @ 60Hz)
USB External: 2 x USB 2.0, 4 x USB 3.2 Gen 2
Internal: 1 x USB 2.0
Digital I/O 4-ch DI, 4-ch DO
Power Switch 1 x Power ON/OFF Button
Serial Ports 2 x RS-232/422/485 (On-board pin header)
OTG USB 1 x Micro USB

General

Dimensions (W x D x H)	130 x 130 x 46 mm (5.1″ x 5.1″ x 1.8″)	194.8 x 174.3 x 65.85 mm (7.67″ x 6.86″ x 2.59″)	194.8 x 174.3 x 65.85 mm (7.67″ x 6.86″ x 2.59″)	192 x 230 x 87 mm (7.55″ x 9.05″ x 3.43″)	192 x 230 x 87 mm (7.55″ x 9.05″ x 3.43″)
Weight	1.2 kg (2.65 lbs)	1.2 kg (2.65 lbs)	1.2 kg (2.65 lbs)	4.5 kg (9.9 lbs)	4.5 kg (9.9 lbs)
Installation methods	Desktop / Wall mount	Desktop / Wall mount	Desktop / Wall mount	Desktop / Wall mount	Desktop / Wall mount
Capturing frame rate	up to 8 camera’s	up to 10 camera’s	up to 12 camera’s	up to 16 camera’s	up to 20 camera’s
GigE & USB 3.0 camera compatibility	Basler Pylon SDK Allied Vision Vimba SDK IDS uEye(+) SDK	Basler Pylon SDK Allied Vision Vimba SDK IDS uEye(+) SDK	Basler Pylon SDK Allied Vision Vimba SDK IDS uEye(+) SDK	Basler Pylon SDK Allied Vision Vimba SDK IDS uEye(+) SDK	Basler Pylon SDK Allied Vision Vimba SDK IDS uEye(+) SDK
Inference throughput	Object Detection (YOLOv5m): 131 FPS	Object Detection (YOLOv5m): 193 FPS	Object Detection (YOLOv5m): 193 FPS	Object Detection (YOLOv5m): 342 FPS	Object Detection (YOLOv5m): 342 FPS
Internal storage capability	256GB or 512GB	256GB or 512GB	256GB or 512GB	256GB, 512GB or 1 TB	256GB, 512GB or 1 TB
Jetson GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	1024-core NVIDIA Ampere GPU with 32 Tensor Cores	1024-core NVIDIA Ampere GPU with 32 Tensor Cores	1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 930 MHz	2048-core NVIDIA Ampere GPU with 64 Tensor Cores] Maximum Operating Frequency: 1.3GH
AI performance reference	Up to 40 TOPs	Up to 70 TOPs	Up to 100 TOPs	Up to 200 TOPs	Up to 275 TOPs
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU	8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)	8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3	12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3
I/O	Ethernet 1 x 10/100/1000 Mbps Display HDMI (Max. resolution 3840×2160 @ 60Hz) USB External: 2 x USB 3.2 Gen 2, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header) OTG USB 1 x Micro USB	Ethernet 1 x 10/100/1000 Mbps Display HDMI (Max. resolution 3840×2160 @ 60Hz) USB External: 6 x USB 3.2 Gen 2 Digital I/O 4-ch DI, 4-ch DO Serial Port (Optional) 2 x RS-232/422/485 (On-board pin header reserved) CANBus 1 OTG USB 1 x Micro USB	Ethernet 1 x 10/100/1000 Mbps Display HDMI (Max. resolution 3840×2160 @ 60Hz) USB External: 6 x USB 3.2 Gen 2 Digital I/O 4-ch DI, 4-ch DO Serial Port (Optional) 2 x RS-232/422/485 (On-board pin header reserved) CANBus 1 OTG USB 1 x Micro USB	Ethernet 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at) Display HDMI (Max. resolution 3840×2160 @ 60Hz) USB External: 2 x USB 2.0, 4 x USB 3.2 Gen 2 Internal: 1 x USB 2.0 Digital I/O 4-ch DI, 4-ch DO Power Switch 1 x Power ON/OFF Button Serial Ports 2 x RS-232/422/485 (On-board pin header) OTG USB 1 x Micro USB	Ethernet 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at) Display HDMI (Max. resolution 3840×2160 @ 60Hz) USB External: 2 x USB 2.0, 4 x USB 3.2 Gen 2 Internal: 1 x USB 2.0 Digital I/O 4-ch DI, 4-ch DO Power Switch 1 x Power ON/OFF Button Serial Ports 2 x RS-232/422/485 (On-board pin header) OTG USB 1 x Micro USB
